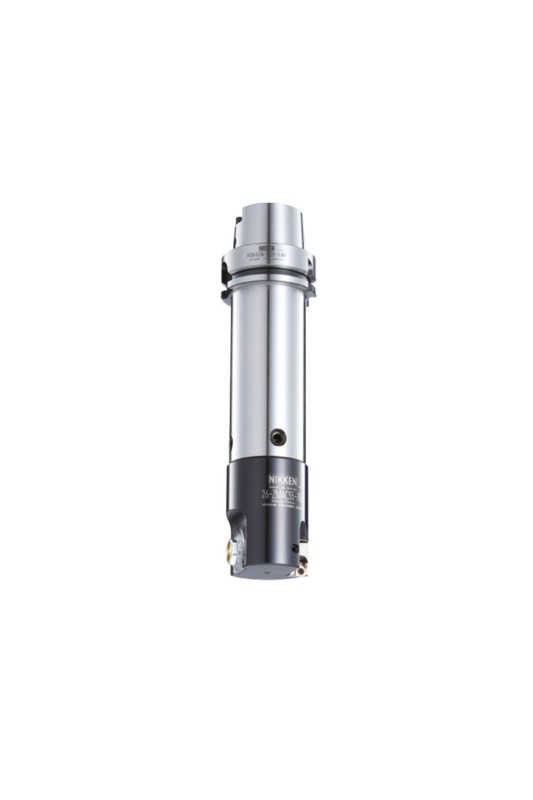

ZMAC Delik İşleme Sistemi
Rakip delik işleme kartuşlarının aksine, tüm hareket mesafesinde uç taşıyıcıyı tam olarak desteklemek için tasarlanmış son derece sağlam bir çift temas desteğine sahiptir.
Sabitleme cıvatası, herhangi bir sapma olasılığını ve önceden ayarlanmış ölçüm varyasyonunu bozmaması için ayar vidasına tam olarak 90 derecede uygulanır.
ZMAC, dahili olarak taşlanmış bir dişe sahip ve 800 HV değerinde özel ısıl işlem görmüş hassas dereceli mikron kadran halkası kullanılarak yapılmıştır. Bu, aynı zamanda sertleştirilmiş ve HRC50-55 ile ısıl işleme tabi tutulmuş hassas taşlanmış kartuş dişiyle eşleştirilmiştir.
ZMAC Başlığı standart olarak merkezi soğutucu akışkan deliğine sahiptir; bu da soğutucuyu bara ve herhangi bir uzatma içinden, optimum soğutma sağlamak amacı ile kesme ucunun hemen üzerine getirir.
Montajlı ağırlığını azaltmak ve daha yüksek dönüş hızlarında çalışmak için ZMAC Alpha seçeneğimiz mevcuttur. Bu, özel sertleştirilmiş hafif alaşımlı malzemeden yapılmıştır ve titreşim gidermek için özel bir iç denge sistemine sahiptir.
Takım sapına bağlı olarak standart modüler ZMAC ve ZMAC Alpha (ZMAC25’den) delik işleme başlıklarımız 10 boyda mevcuttur:
- ZMAC16 – 15.9mm ile 20.2mm arası delik ölçüleri için
- ZMAC20 – 19.8mm to 25.2mm arası delik ölçüleri için
- ZMAC25 – 24.8mm to 32.2mm arası delik ölçüleri için
- ZMAC32 – 31.8mm to 42.2mm arası delik ölçüleri için
- ZMAC42 – 41.8mm to 55.2mm arası delik ölçüleri için
- ZMAC55 – 54.8mm to 70.2mm arası delik ölçüleri için
- ZMAC70 – 69.8mm to 85.2mm arası delik ölçüleri için
- ZMAC85 – 84.8mm to 100.2mm arası delik ölçüleri için
- ZMAC100 – 99.5mm to 140.5mm arası delik ölçüleri için
- ZMAC140 – 139.5mm to 180.5mm arası delik ölçüleri için

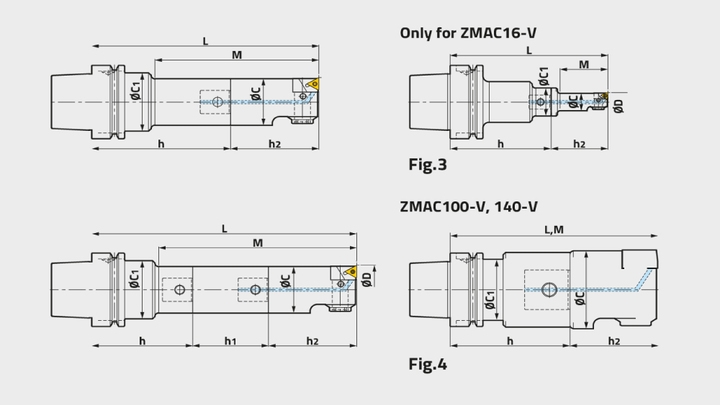

| SAP | DELİK İŞLEME ARBORU | UZATICI / LEVHA | KAFA / KARTUŞ / BIT | ÇAP ‘D’ MIN | ÇAP ‘D’ MAX | DELİK İŞLEME DERİNLİĞİ ‘H’ | EKLE | UYGULAMA | |
|---|---|---|---|---|---|---|---|---|---|
| BT40-Q12-110 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
| BT40-Q12-110 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| BT40-Q12-80 + ~ + 12-ZMAC16-45AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + ~ + 12-ZMAC16-45V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + ~ + 12-ZMAC16-55AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + ~ + 12-ZMAC16-55V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole grinding |
| BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
| BT40-Q16-125 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole grinding |
| BT40-Q16-125 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
| BT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q16-125 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
| BT40-Q16-95 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
| BT40-Q16-95 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
| BT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q16-95 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
| BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
| BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
| BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
| BT40-Q20-110 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q20-110 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
| BT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q20-110 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
| BT40-Q20-80 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q20-80 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
| BT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q20-80 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
| BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
| BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
| BT40-Q26-140 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q26-140 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
| BT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q26-140 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
| BT40-Q26-95 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q26-95 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
| BT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q26-95 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
| BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
| BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
| BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
| BT40-Q34-110 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q34-110 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
| BT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
| BT40-Q34-110 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | Finishing |
| BT40-Q34-95 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q34-95 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
| BT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
| BT40-Q34-95 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
| BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
| BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
| BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
| BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
| BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
| BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
| BT40-Q42-95 + ~ + 42-ZMAC85-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
| BT40-Q42-95 + ~ + 42-ZMAC85-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
| BT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
| BT40-Q42-95 + ~ + 42-ZMAC85R-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 195.0 | CC08 | Finishing |
| BT40-Q9-80 + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
| BT40-Q9-80 + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
| BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| BT40-Q9-95N + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
| BT40-Q9-95N + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
| BT50-Q12-125 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q12-125 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| BT50-Q12-95 + ~ + 12-ZMAC16-45AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q12-95 + ~ + 12-ZMAC16-45V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
| BT50-Q12-95 + ~ + 12-ZMAC16-55AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q12-95 + ~ + 12-ZMAC16-55V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
| BT50-Q12-95 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q12-95 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
| BT50-Q16-125N + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
| BT50-Q16-125N + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
| BT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q16-125N + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
| BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
| BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
| BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
| BT50-Q16-155 + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
| BT50-Q16-155 + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
| BT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q16-155 + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
| BT50-Q20-110 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q20-110 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
| BT50-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q20-110 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
| BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
| BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 142.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
| BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
| BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
| BT50-Q20-125 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q20-125 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
| BT50-Q20-125 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q20-125 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
| BT50-Q26-140 + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q26-140 + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
| BT50-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 117.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q26-140 + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
| BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
| BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 177.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
| BT50-Q26-170N + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q26-170N + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
| BT50-Q26-170N + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 182.0 | CC06 | High speeds / deep hole drilling |
| BT50-Q26-170N + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
| BT50-Q34-170 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q34-170 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
| BT50-Q34-170 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 190.0 | CC08 | High speeds / deep hole drilling |
| BT50-Q34-170 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
| BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
| BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
| BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
| BT50-Q34-200 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q34-200 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
| BT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
| BT50-Q34-200 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
| BT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
| BT50-Q42-125 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 290.0 | CC12 | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
| BT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
| BT50-Q42-190 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
| BT50-Q42-225A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-225A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
| BT50-Q42-225A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 325.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-225A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
| BT50-Q42-225A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-225A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
| BT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-225A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 325.0 | CC12 | Finishing |
| BT50-Q42-275A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-275A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Finishing |
| BT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-275A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
| BT50-Q42-275A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-275A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
| BT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-275A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 375.0 | CC12 | Finishing |
| BT50-Q42-325A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-325A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
| BT50-Q42-325A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 425.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-325A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
| BT50-Q42-325A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
| BT50-Q42-325A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
| BT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
| BT50-Q42-325A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 425.0 | CC12 | Finishing |
| BT50-Q9-110 + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q9-110 + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| BT50-Q9-125N + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
| BT50-Q9-125N + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
| HSK100A-Q12-125 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| HSK100A-Q12-95 + ~ + 12-ZMAC16-45V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
| HSK100A-Q12-95 + ~ + 12-ZMAC16-55V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
| HSK100A-Q12-95 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| HSK100A-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
| HSK100A-Q26-170N + ~ + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
| HSK100A-Q34-170 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
| HSK100A-Q34-200 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
| HSK100A-Q9-110 + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| HSK100A-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| HSK100A-Q9-125N + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
| HSK63A-Q12-110 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q12-110 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| HSK63A-Q12-80 + ~ + 12-ZMAC16-45AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q12-80 + ~ + 12-ZMAC16-45V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
| HSK63A-Q12-80 + ~ + 12-ZMAC16-55AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q12-80 + ~ + 12-ZMAC16-55V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
| HSK63A-Q12-80 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q12-80 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
| HSK63A-Q16-125 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
| HSK63A-Q16-95 + ~ + 16-ZMAC32-55AAV | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
| HSK63A-Q16-95 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
| HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
| HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
| HSK63A-Q42-95 + ~ + 42-ZMAC85-100AAV | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
| HSK63A-Q42-95 + ~ + 42-ZMAC85-100V | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
| HSK63A-Q9-80 + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q9-80 + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| HSK63A-Q9-95N + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
| HSK63A-Q9-95N + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
| IT40-Q12-110 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q12-110 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| IT40-Q12-80 + ~ + 12-ZMAC16-45AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q12-80 + ~ + 12-ZMAC16-45V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
| IT40-Q12-80 + ~ + 12-ZMAC16-55AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q12-80 + ~ + 12-ZMAC16-55V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
| IT40-Q12-80 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q12-80 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
| IT40-Q16-125 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
| IT40-Q16-125 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
| IT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q16-125 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
| IT40-Q16-95 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
| IT40-Q16-95 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
| IT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q16-95 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
| IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
| IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
| IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
| IT40-Q20-110 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q20-110 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
| IT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q20-110 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
| IT40-Q20-80 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q20-80 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
| IT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q20-80 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
| IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
| IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
| IT40-Q26-140 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q26-140 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
| IT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q26-140 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
| IT40-Q26-95 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q26-95 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
| IT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q26-95 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
| IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
| IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
| IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
| IT40-Q34-110 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q34-110 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
| IT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q34-110 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q34-95 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q34-95 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
| IT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q34-95 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
| IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
| IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
| IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | IT50 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
| IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
| IT40-Q42-95 + ~ + 42-ZMAC85-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
| IT40-Q42-95 + ~ + 42-ZMAC85-100V | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
| IT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
| IT40-Q9-80 + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q9-80 + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| IT40-Q9-95N + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
| IT40-Q9-95N + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
| IT50-Q12-125 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q12-125 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-125 | IT50-Q12-125 | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
| IT50-Q12-95 + ~ + 12-ZMAC16-45AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q12-95 + ~ + 12-ZMAC16-45V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
| IT50-Q12-95 + ~ + 12-ZMAC16-55AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q12-95 + ~ + 12-ZMAC16-55V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
| IT50-Q12-95 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q12-95 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
| IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
| IT50-Q16-125N + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
| IT50-Q16-125N + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
| IT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
| IT50-Q16-125N + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
| IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
| IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
| IT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
| IT50-Q16-155 + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
| IT50-Q16-155 + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
| IT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
| IT50-Q16-155 + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
| IT50-Q20-110 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q20-110 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
| IT50-Q20-110 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
| IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
| IT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
| IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
| IT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
| IT50-Q20-125 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q20-125 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
| IT50-Q20-125 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
| IT50-Q26-140 + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q26-140 + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
| IT50-Q26-140 + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
| IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
| IT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
| IT50-Q26-170N + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q26-170N + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
| IT50-Q26-170N + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
| IT50-Q34-170 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q34-170 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
| IT50-Q34-170 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
| IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
| IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
| IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
| IT50-Q34-200 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q34-200 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
| IT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
| IT50-Q34-200 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC140R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
| IT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
| IT50-Q42-125 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
| IT50-Q42-190 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
| IT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
| IT50-Q42-190 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
| IT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
| IT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
| IT50-Q42-190 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
| IT50-Q42-225A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-225A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
| IT50-Q42-225A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
| IT50-Q42-225A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-225A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
| IT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-275A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-275A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Schlichten |
| IT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-275A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
| IT50-Q42-275A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-275A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
| IT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q42-325A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-325A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
| IT50-Q42-325A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
| IT50-Q42-325A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
| IT50-Q42-325A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
| IT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
| IT50-Q9-110 + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q9-110 + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
| IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
| IT50-Q9-125N + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
| IT50-Q9-125N + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 |
Değerlendirmeler
Henüz değerlendirme yapılmadı.
